Fully Automated
Wi-Fi Performance Testing
The industry standard for qualifying Wi-Fi Access Points. Supports 32 Wi-Fi 7 Radios, full Mesh topology, and automated pass/fail metrics.
Drag to rotate • Scroll to zoom
The Candela Solution
Candela Technologies offers a fully automated TR-398 Issue 4 test system. All required hardware—including multi-station emulators, traffic generators, and RF enclosures—is provided in a single package.
- 32 Intel be200 Tri-band Wi-Fi 7 Radios
- Real Hardware (Not Virtual)
- Supports OFDMA, MU-MIMO, MLO
- Automated Pass/Fail Reporting

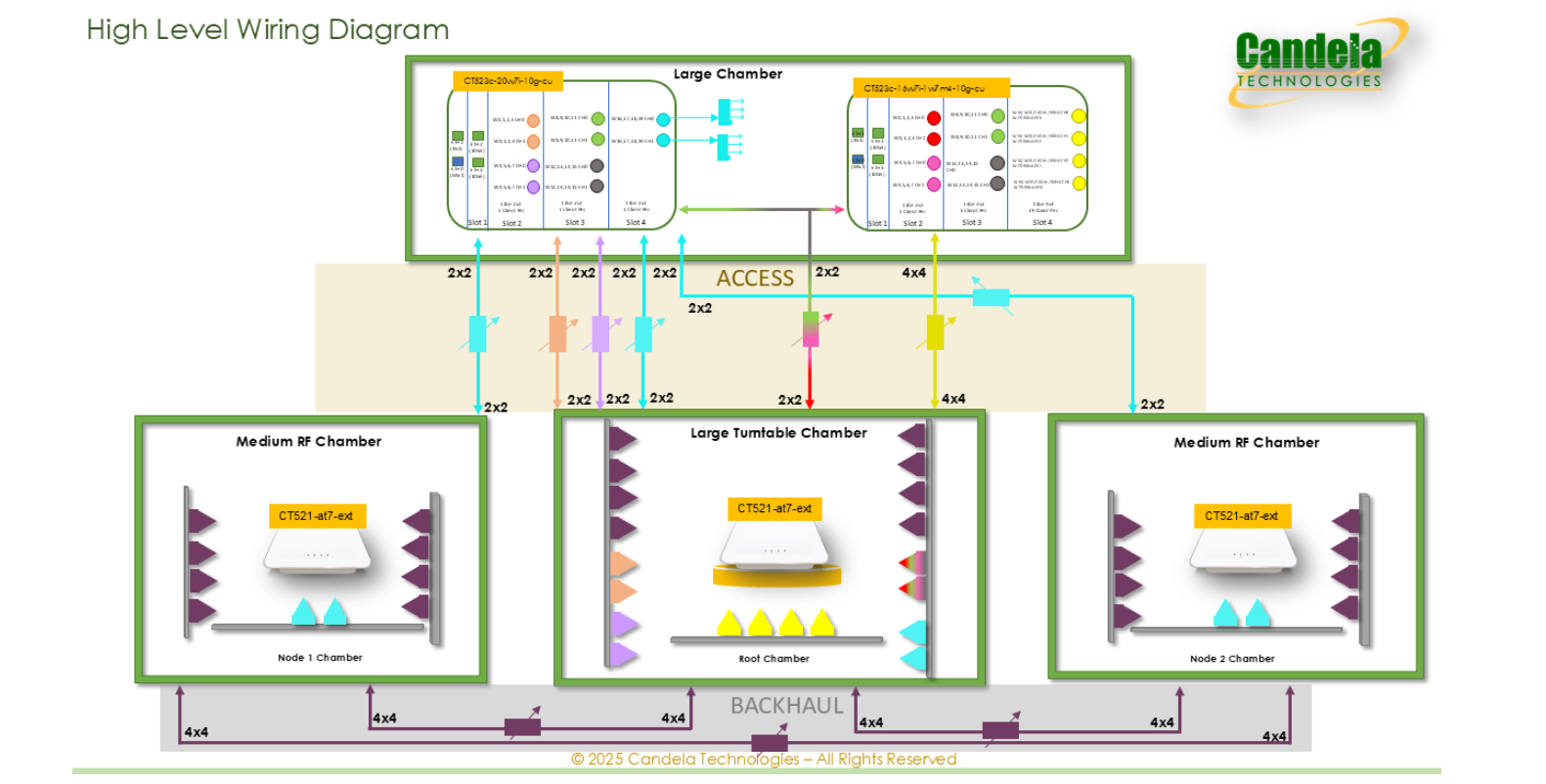

High Level Wiring Diagram
TR-398 Issue 4 with Mesh Extender Configuration
Hardware & Software

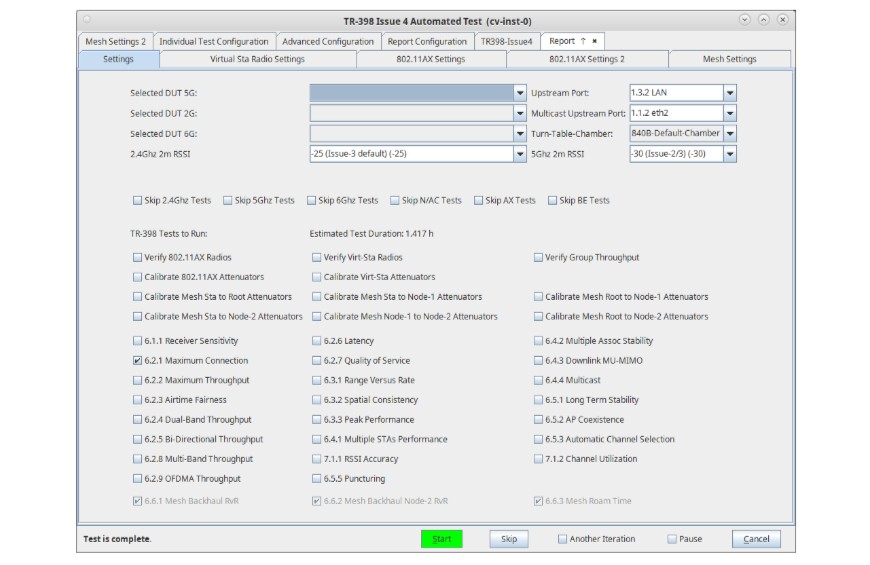

Includes LANforge CT523c Multi-station Emulation, RF Chambers (80dB Stack), and fully automated GUI.

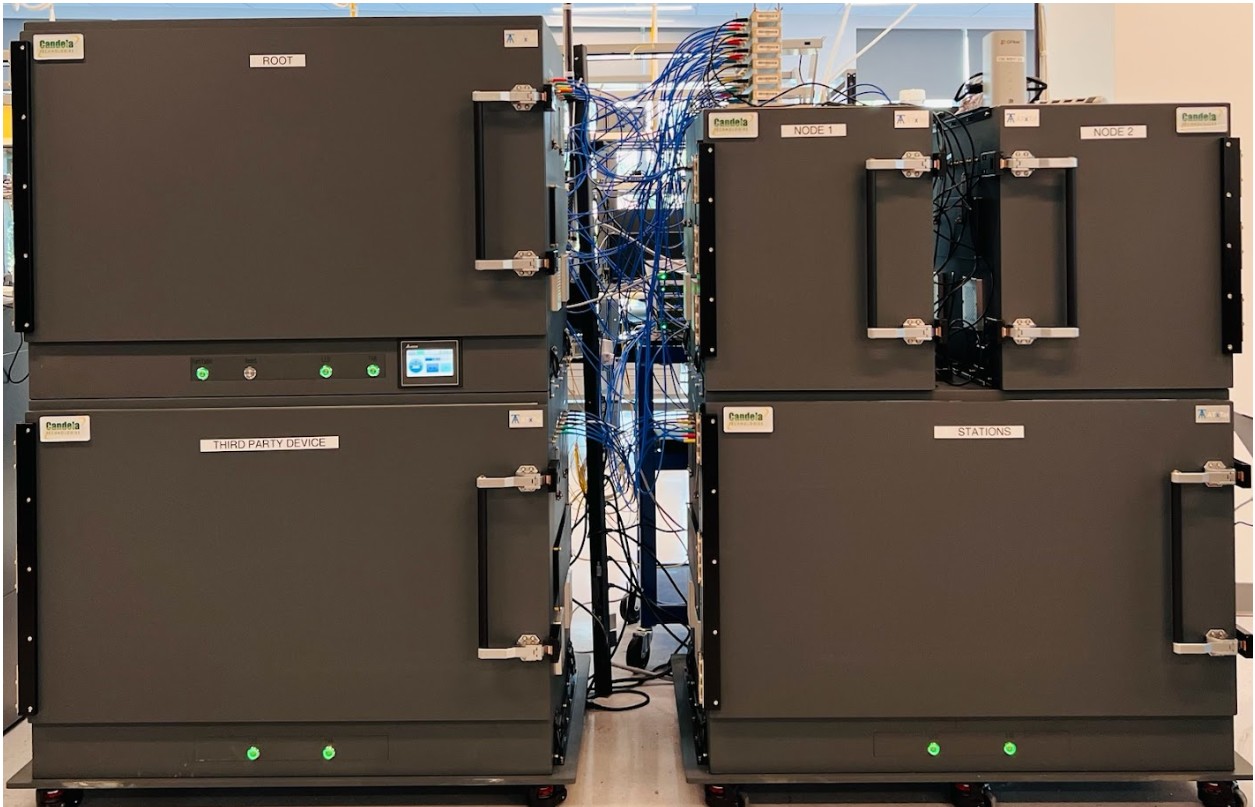

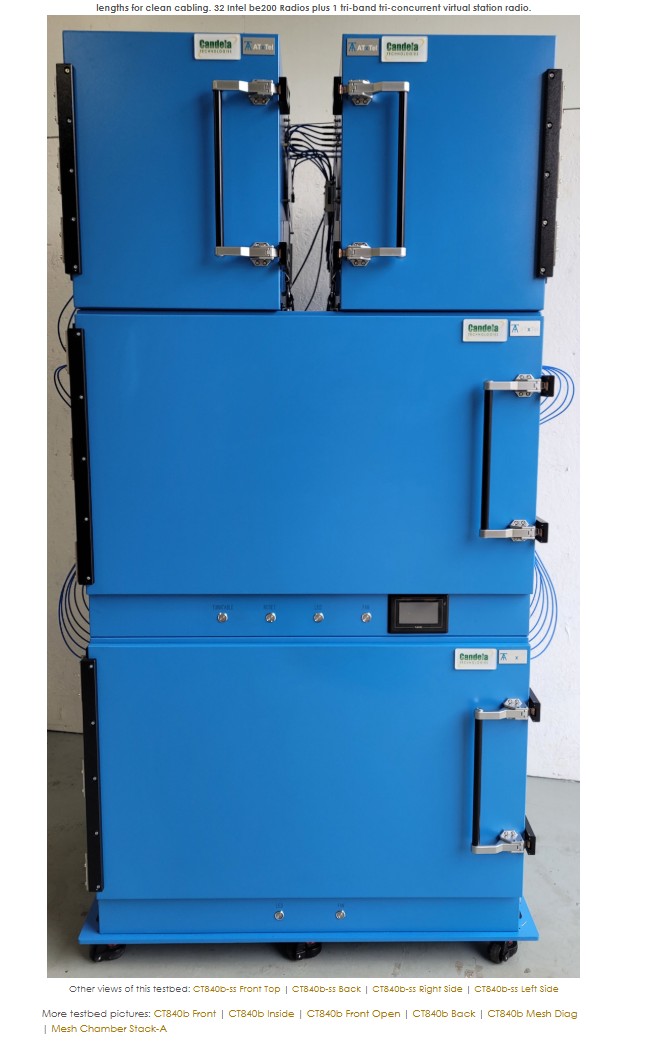

80dB Chamber Stack with Programmable Attenuators
Includes these Building Blocks
Automated Test Reports
The TR-398 testbed automatically generates detailed PDF, HTML, and Excel reports for every test case. Swipe below to explore the standard test suite.
MLO STR Test
Multi-Link Operation Simultaneous Transmit and Receive validation.
Maximum Connection
Verifies successful association of maximum station capacity.
Max TCP Throughput
Maximum sustainable TCP throughput measurement.
Airtime Fairness
Ensures fair spectrum allocation across multiple clients.
See it in Action
Watch an overview of the Candela TR-398 solution, demonstrating automation flow and physical testbed setup.
Success Stories
Testbed Options
Available configurations to meet your specific testing needs.
| Configuration | Stations | Chambers | Attenuators |
|---|---|---|---|
| Non-Mesh Testbed | 32 | 1 (DUT) + 1 (STA) | 2 |
| 1 Extender Mesh Testbed | 32 | 1 (DUT) + 1 (STA) + 1 (Mesh) | 3 |
| 2 Extender Mesh Testbed | 32 | 1 (DUT) + 1 (STA) + 2 (Mesh) | 6 |
Lead Times
TaaS / Onsite Support
Customers with occasional needs can use our Test as a Service option. Our engineers perform testing in our fully equipped lab and provide detailed reports.
